FREQUENCY RANGE: 0.8-6 GHz (.8-3 GHz with
1-5/8” EIA connector)
POWER INPUT (maximum): See Model Configu
rations for CW rating
GAIN: 11 dBi minimum, typically increasing to
22 dBi at 6 GHz. See curve.
IMPEDANCE: 50 ohms nominal
VSWR: Maximum 2.5:1; Average 1.6:1
BEAMWIDTH (average): See curve
CONNECTOR: See Model Configurations.

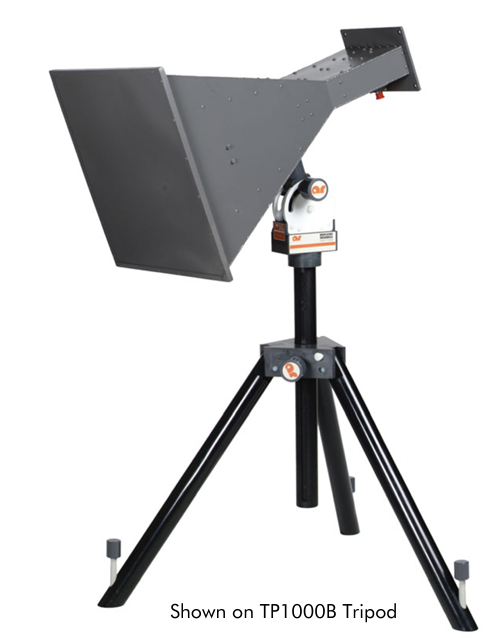

MOUNTING PROVISIONS: Mounting pads on
two adjacent sides for tripod, and back plate.
WEIGHT: 7.26 kg, 16 lbs
SIZE (W x H x D): 46.3 x 46.3 x 69.2 cm (18.25
x 18.25 x 27.25 in
EXPORT CLASSIFICATION: EAR99
