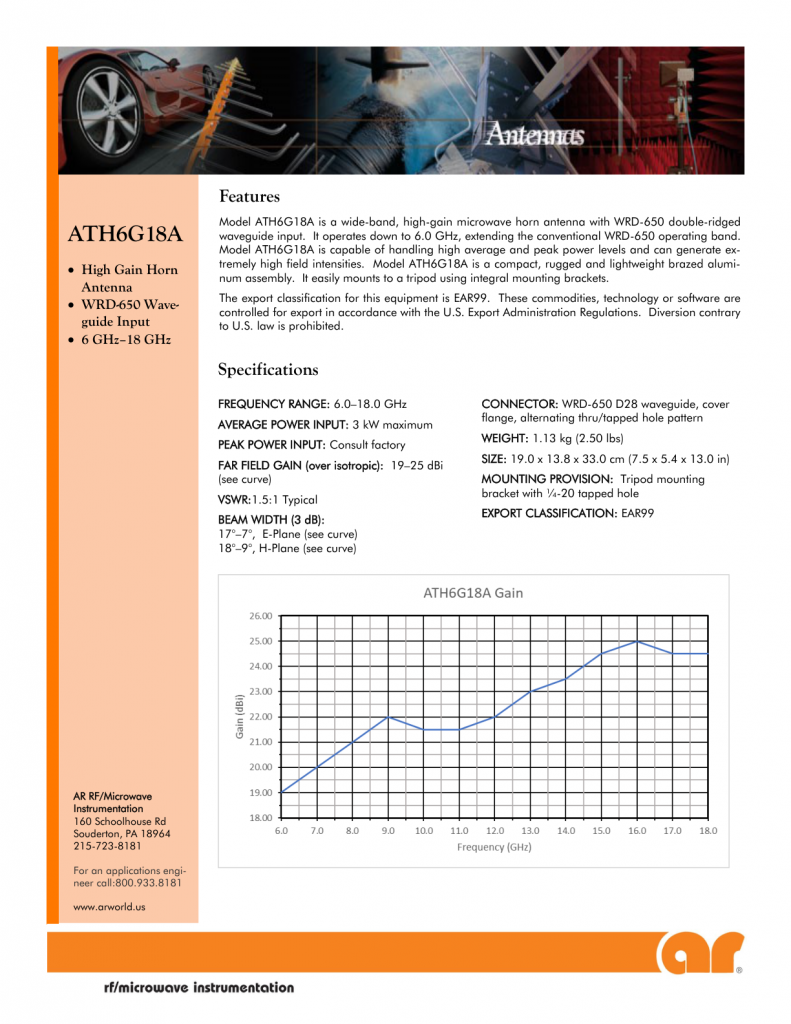

Model ATH6G18A is a wide-band, high-gain microwave horn antenna with WRD-650 double-ridged waveguide input. It operates down to 6.0 GHz, extending the conventional WRD-650 operating band. Model ATH6G18A is capable of handling high average and peak power levels and can generate ex- tremely high field intensities. Model ATH6G18A is a compact, rugged and lightweight brazed alumi- num assembly. It easily mounts to a tripod using integral mounting brackets. The export classification for this equipment is EAR99. These commodities, technology or software are controlled for export in accordance with the U.S. Export Administration Regulations. Diversion contrary to U.S. law is prohibited. Features Graphs ATH6G18A • High Gain Horn Antenna • WRD-650 Wave- guide Input • 6 GHz–18 GHz AR RF/Microwave Instrumentation 160 Schoolhouse Rd Souderton, PA 18964 215-723-8181
