AR08M4-800

品牌：AR

AR08M4-800

产品描述

技术参数

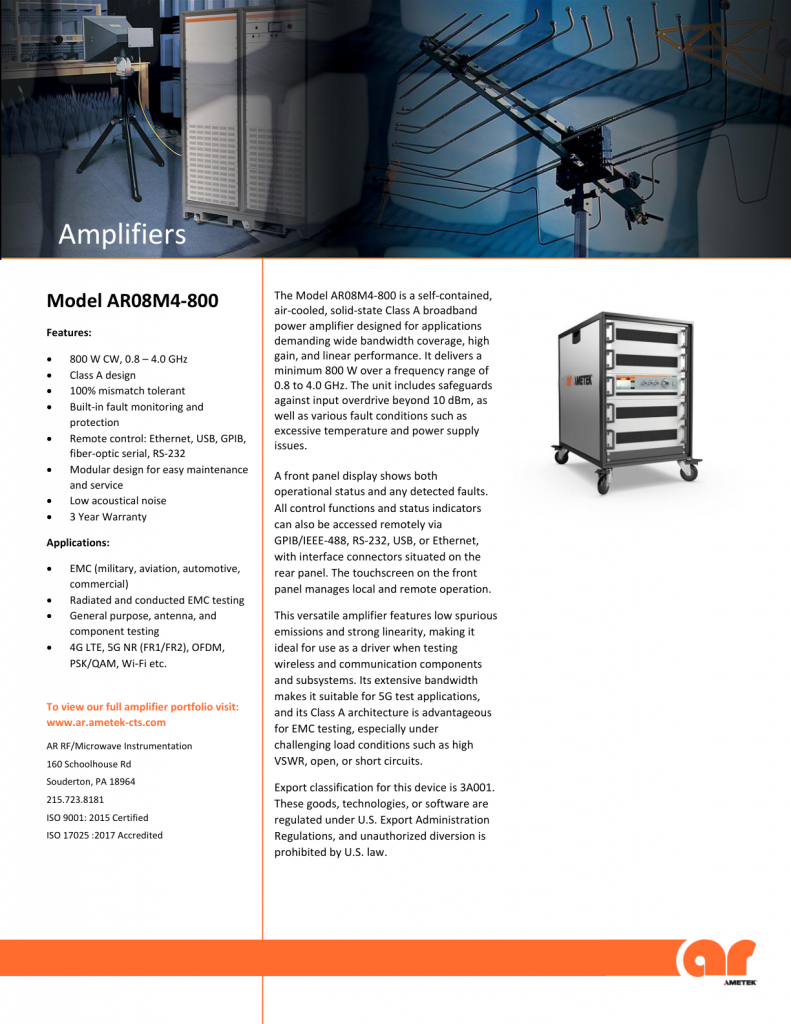

AR08M4-800 型号是一款自成一体、风冷式固态A类宽带功率放大器，专为需要宽频带覆盖、高增益和线性性能的应用而设计。该设备在 0.8 至 4.0 GHz 频率范围内可提供最低 800 瓦的输出功率。设备具备多种保护功能，包括防止输入过载（超过 10 dBm）以及应对高温、电源异常等各类故障情况。

Rated Power Output	PSAT, 900, 1000, 1100, W
Input for Rated Output	Pin, 1, mW, 0, dBm
Power Output @ 3 dB Compression	P3dB, 850, 900, 1000, W
Power Output @ 1 dB Compression	P1dB, 700, 800, 900, W
Operating Frequency	BW, 0.8, 4.0, GHz
Gain (Small Signal)	59, dB
Gain Reduction Adjustment (when below gain compression)	30, dB
Flatness @ small signal (-20 dBm input)	∆G, ±2.0, ±3.0, dB
Input Impedance	Z in, 50, Ohm, 1.5:1, 2.0:1, VSWR
Output Impedance	Z out, 50, Ohm
3rd Order Intercept	IP3, +69, dBm
Noise Figure	NF, 12, dB
Harmonic Distortion @ 700 W	H2, H3, -20, -15, dBc
Spurious	-70, dBc
Power Consumption	PD, 5096, W
